Booking 2.0.0 - Use Case 11 Cancel Booking by Shipper - Sequence Model

DCSA Repository / Interface Standards / Interface Standard Booking 2.0.0 and Bill of Lading 3.0.0 / Booking 2.0.0 - Use Cases - Sequence Model / Booking 2.0.0 - Use Case 11 Cancel Booking by Shipper - Sequence Model

Project:

Model elements
Booking 2.0.0 - Send to all subscribers / Full Push Notifcations - Sequence Model
Booking 2.0.0 - Poll Notifications - Sequence Model
Booking 2.0.0 - Lightweight Notification - Sequence Model
Booking 2.0.0 - Use Case 1 Submit Booking Request - Sequence Model
Booking 2.0.0 - Use Case 2 Request to update Booking Request - Sequence Model
Booking 2.0.0 - Use Case 3 Submit updated Booking Request - Sequence Model
Booking 2.0.0 - Use Case 4 Reject Booking Request - Sequence Model
Booking 2.0.0 - Use Case 5 Confirm Booking Request - Sequence Model
Booking 2.0.0 - Use Case 6 Request to amend Confirmed Booking - Sequence Model
Booking 2.0.0 - Use Case 7 Request amendment to Confirmed Booking - Sequence Model
Booking 2.0.0 - Use Case 8 Process Amendment to Confirmed Booking - Sequence Model
Booking 2.0.0 - Use Case 9 Cancel Amendment to Confirmed Booking - Sequence Model
Booking 2.0.0 - Use Case 10 Decline Booking by Carrier - Sequence Model
Booking 2.0.0 - Use Case 11 Cancel Booking by Shipper - Sequence Model
Booking 2.0.0 - Use Case 12 Confirm Booking Completed - Sequence Model
Booking 2.0.0 - Use Case 13 Cancel confirm Booking Completed by Shipper- Sequence Model
Booking 2.0.0 - Use Case 14 Process Booking cancellation - Sequence Model

Booking 2.0.0 - Use Case 11 Cancel Booking by Shipper - Sequence Model : Interaction diagram

Created:	11/26/2024 4:25:23 PM
Modified:	1/8/2025 11:45:13 AM
Project:
Author:	DCSA
Version:	2024.4
Advanced:
ID:	{135D8350-4ED9-4863-B70A-C136E356E21C}

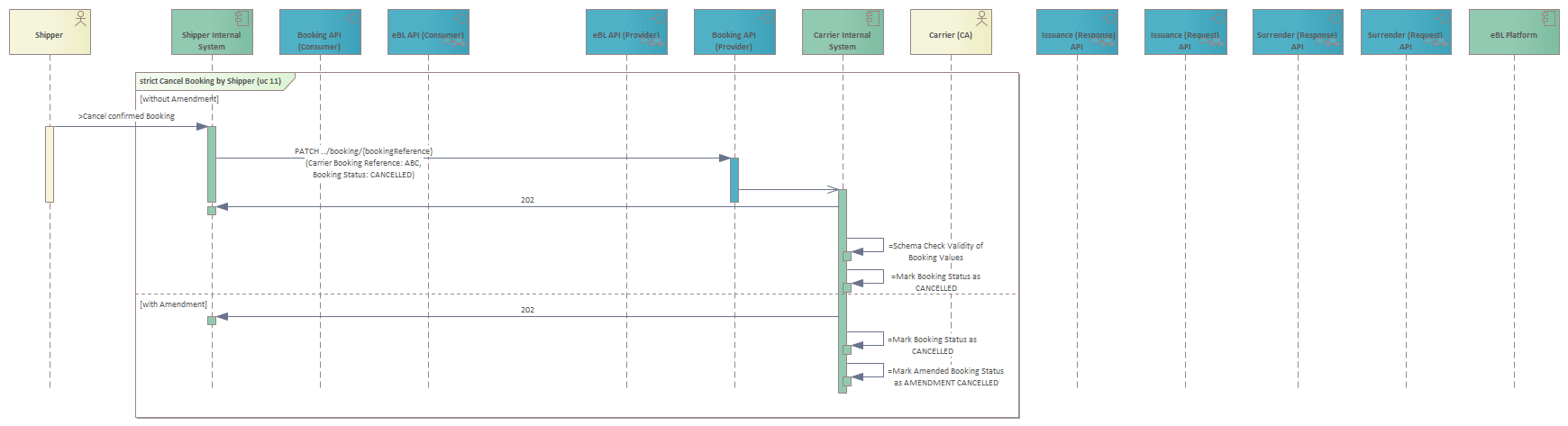

This diagram shows the response of the Carrier Internal System when the Shipper likes to cancel the confirmed Booking.<br/>Note: This sequence is being followed by a Notification Sequence.<br/><br/>
