Booking 2.0.0 - Poll Notifications - Sequence Model : Interaction diagram

Created:	11/14/2024 11:40:36 AM
Modified:	1/7/2025 11:16:31 AM
Project:
Author:	DCSA
Version:	2024.4
Advanced:
ID:	{9F95780E-6CC8-4a26-8D74-0A421C2973CB}

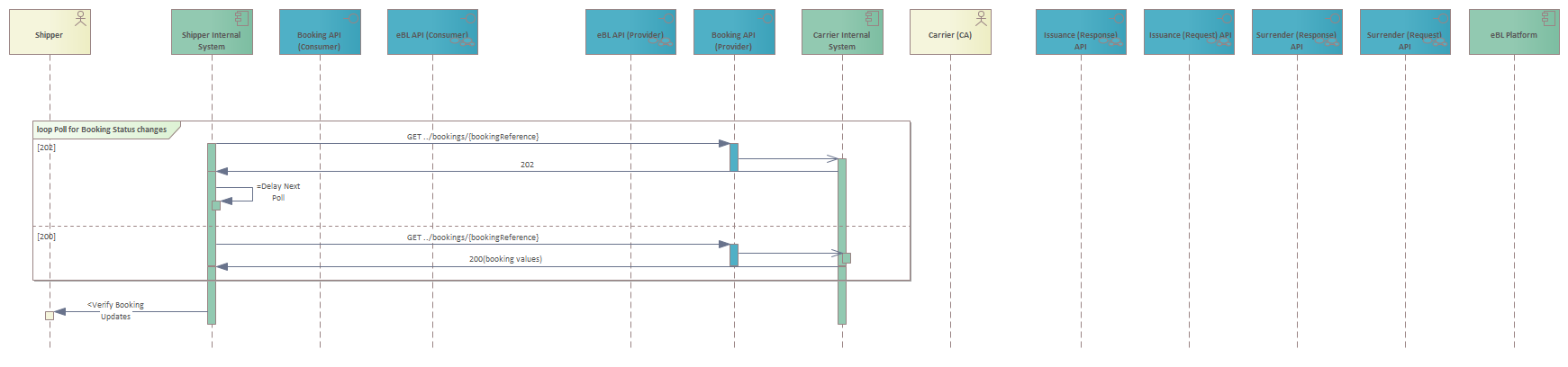

This diagram shows how the Shipper Internal Systems constantly polls the Carrier Internal System until the Booking has been UPDATED or CONFIRMED.<br/>
